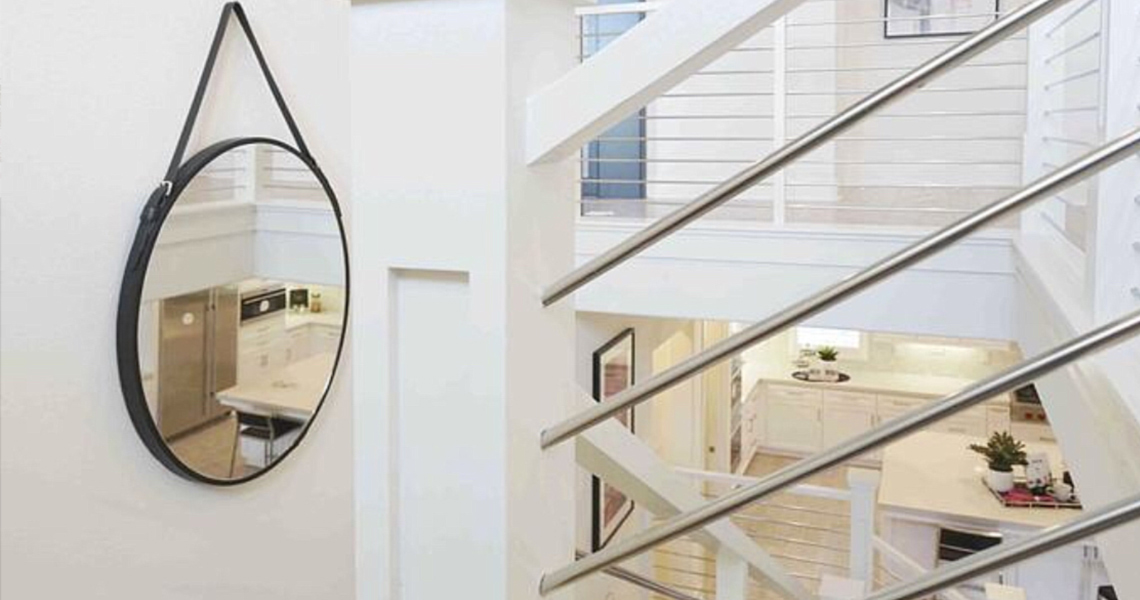

Stainless Steel / Architectural Products

In addition to the stocked items shown below, Ascension Stair Parts® offers a wide range of stainless steel, glass and cable products as well as a full compliment of hardware and wood components designed specifically for use with stainless/glass/cable. Click here or on the catalog image to download our architectural products brochure to see all available products.

We offer

  • Design
  • Fabrication
  • Installation
  • Interior and Exterior Systems
  • Commercial and Residential
  • Stock and Custom Service

Stainless Steel: Components

stainless steel 90 degree elbow stainless steel 90 degree adjustable elbow
SS101 SS102
90º Square Elbow 90º Square Adjustable Elbow
Grade 304 Stainless Steel Grade 304 Stainless Steel
Tube size: 40X40X2mm Tube size: 40X40X2mm
Satin Polish Finish Satin Polish Finish
stainless steel 90 degree 3 way elbow stainless steel square union connector
SS103 SS104
90º 3 Way Square Elbow 180º Square Union Connector
Grade 304 Stainless Steel Grade 304 Stainless Steel
Tube size: 40X40X2mm Tube size: 40X40X2mm
Satin Polish Finish Satin Polish Finish
stainless steel square end cap stainless steel 3 way connector
SS105 SS106
Square End Cap Square 3-way "T" Connector
Grade 304 Stainless Steel Grade 304 Stainless Steel
Tube size: 40X40X2mm Tube size: 40X40X2mm
Satin Polish Finish Satin Polish Finish
stainless steel flange cover stainless steel square wall flange base
SS107 SS108
Square Flange Cover Square Wall Flange Base
Grade 304 Stainless Steel Grade 304 Stainless Steel
Tube size: 40X40X2mm Tube size: 40X40X2mm
Satin Polish Finish Satin Polish Finish
stainless steel square tube with welding base stainless steel welding base pre-drilled
SS100 SS100PD
41" Square Tube w/Welding Base 41" Square Tube w/Welding Base, Pre-Drilled 3/16"mm holes
Grade 304 Stainless Steel Grade 304 Stainless Steel
Tube size: 40X40X2mm Tube size: 40X40X2mm
Satin Polish Finish Satin Polish Finish
stainless pivoting newel welding base stainless steel welding base
SS100ADJB SS100WB
Pivoting Newel Welding Base for 40X40 Square Tube Welding Base for 40X40 Square Tube
Grade 304 Stainless Steel Grade 304 Stainless Steel
Tube size: 40X40X2mm Tube size: 40X40X2mm
Satin Polish Finish Satin Polish Finish
stainless steel 40mm square tubing stainless steel glass clamp
SSTSQ40304 GC55SQ
40mm Square Tubing Square Glass Clamp
Grade 304 Stainless Steel Grade 304 Stainless Steel
2mm Wall Channel: 3/8" Glass (standard)
contact us for current stock lengths Channel: 1/2" Glass (available)
stainless steel glass clamp stainless steel glass stanchion
GC5040D SS801
D-Shaped 50mm x 40mm Glass Clamp 50x50x160mm Glass Stanchion
Stainless Steel Grade 2205 Stainless Steel
 6-8mm Glass 10mm To 19mm Glass
Shown in Satin Polish Finish Satin Polish Finish
stainless steel flat saddle wall bracket stainless steel curved saddle wall bracket
IF457XS4 IF456XS4
Flat Saddle Wall Bracket Curved (42.4mm) Saddle Wall Bracket
Grade 304 Stainless Steel Grade 304 Stainless Steel
Overall: 80X50mm Overall: 80X50mm
Satin Polish Finish Satin Polish Finish
stainless steel round end cap flat stainless steel 90 degree returned end
SS205 SS209
Round End Cap Flat 90º Returned End
Grade 304 Stainless Steel Grade 304 Stainless Steel
For 42.4mm Round Tubing 42.4mm Round Tubing
Satin Polish Finish Satin Polish Finish
stainless steel 1/2 inch round tubing stainless steel 5/8 inch round tubing
SSTR12304 SSTR58304
1/2" Round Tubing 5/8" x Round Tubing
Grade 304 Stainless Steel Grade 304 Stainless Steel
.065" Wall .065" Wall
contact us for current stock lengths contact us for current stock lengths
stainless steel 3/4 inch round tubing stainless steel 42mm round tubing
SSTR34304 SSTR42304
3/4" Round Tubing 42.4mm Round Tubing
Grade 304 Stainless Steel Grade 304 Stainless Steel
.065" Wall .065" Wall
contact us for current stock lengths contact us for current stock lengths
stainless steel 1/2 inch through bar holder stainless steel 1/2 inch ending bar holder
SS901 SS902
1/2" Round Through Bar Holder 1/2" Round Ending Bar Holder
Grade 304 Stainless Steel Grade 304 / Back: Flat
Back: Flat Satin Polish Finish
Satin Polish Finish Specify: LH or RH Set Screws
stainless steel ending sphere stainless steel through sphere
SS903 SS908
1/2" Round Tube Ending Sphere 5/8" Round Tube Through Sphere
Grade 304 Stainless Steel Grade 304 Stainless Steel
Ball Diameter: 30mm Ball Diameter: 30mm
Satin Polish Finish Satin Polish Finish
stainless steel 180 degree saddle - flat
SS910
180º Flat Saddle
Grade 304 Stainless Steel
Top & Bottom Views Shown
Satin Polish Finish
stainless steel 90 degree saddle - flat
SS911
90º Flat Saddle
Grade 304 Stainless Steel
Top & Bottom Views Shown
Satin Polish Finish
stainless steel 135 degree flat saddle
SS912
135º Flat Saddle
Grade 304 Stainless Steel
Top & Bottom Views Shown
Satin Polish Finish
stainless steel 180 degree saddle - curved
SS920
180º Curved (42.4mm) Saddle
Grade 304 Stainless Steel
Top & Bottom Views Shown
Satin Polish Finish
stainless steel 90 degree saddle - curved
SS921
90º Curved (42.4mm) Saddle
Grade 304 Stainless Steel
Top & Bottom Views Shown
Satin Polish Finish
stainless steel 135 degree curved saddle
SS922
135º Curved (42.4mm) Saddle
Grade 304 Stainless Steel
Top & Bottom Views Shown
Satin Polish Finish
stainless steel square adjustable stand up bracket
SS110
Stand Up Square Adjustable Bracket
Grade 304 Stainless Steel
Tube size: 40X40X2mm
Satin Polish Finish
stainless steel square adjustable stand up bracket with flat saddle
SS110 w/Flat Saddle
Stand Up Square Adj Bracket & Flat Saddle
Grade 304 Stainless Steel
Flat Saddle Options: 910 (shown), 911, 912
Satin Polish Finish
stainless steel square adjustable stand up bracket with curved saddle
SS110 w/Curved Saddle
Stand Up Square Adj Bracket & Curved Saddle
Grade 304 Stainless Steel
Curved Saddle Options: 920 (shown), 921, 922
Satin Polish Finish
stainless steel square fixed stand up bracket
SS111
Stand Up Square Fixed Bracket & Flat Saddle
Grade 304 Stainless Steel
Tube size: 40X40X2mm
Satin Polish Finish
stainless steel square pivoting stand up bracket with flat saddle
SS112
Stand Up Square Pivoting Bracket & Flat Saddle
Grade 304 Stainless Steel
Tube size: 40X40X2mm
Satin Polish Finish
stainless steel square fixed stand up bracket with flat saddle
SS113
Screw Down Stand Up Bracket w/Fixed 90 Degree Saddle
Grade 304 Stainless Steel
Tube size: 40X40X2mm
Satin Polish Finish

Stainless Steel: Stealth Cable Components (click on images for product information)

Stainless Steel: Tools

hydraulic swager for stainless steel cable swager / cutter for stainless steel cable
SWAGER SWAGCUTTER
Hydraulic Swager Swager / Cutter
For swaging SS cable For swaging & cutting SS cable
stainless steel cable cutter spanner wrench for stainless steel cable fittings
CABLECUTTER SPANNERWRENCH
Cable Wire Cutter Spanner Wrench
For cutting SS cable For tensioning SS cable fittings
